    ezSystem Professional

    The professional version of ezSystem is a combination of ezCircuit Designer professional and CoreChart professional. This program requires .NET Framework V4.0 or higher in order to run. The power of this software is depend on each elements of it:

    ezCircuit Designer   Slide Down || Slide Up

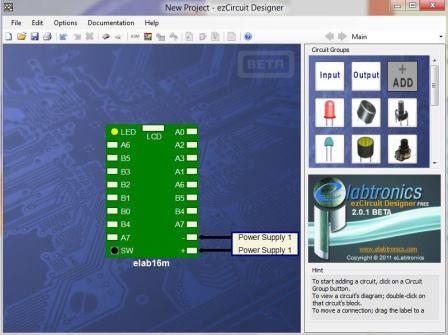

    CircuitDesigner Professional

    Features/Specifications

    The Professional version of ezCircuit Designer includes all the features of Standard ezCircuit Designer plus direct single click interaction to CoreChart Professional and support for 25 chips in the 18Fxxx Family, 87 chips in the 16Fxxx Family, 16 chips in the 12Cxxx Family and 5 chips in the 10Fxxx family. Hence this covers (a total of 133) 12bit, 14bit and 16bit instruction set PIC chips. Complete Data Sheets are available for each chip and ezCircuit Designer can suggest a chip based on the circuit blocks currently in the design. Both professionals and enthusiasts can get the most out of ezCircuit Designer.

    CoreChart   Slide Down || Slide Up

    CoreChart Professional

    Features/Specifications

    The Professional version of CoreChart maintains all the features of Standard CoreChart, such as seamless use of ezCoreChart icon with standard icons, plus "CoreChart P18" for 25 chips in the 18Fxxx Family, 87 chips in the 16Fxxx Family, 16 chips in the 12Cxxx Family and 5 chips in the 10Fxxx Family. Hence this covers (a total of 133) 12bit, 14bit and 16bit instruction set PIC chips. Industrial projects, advanced subroutine modules, direct support for an expanded set of chip configurations, as well as valuable technical data are easily accessible. Professionals and enthusiasts can get the most out of pre-packaged CoreChart subroutines and easily access chips in the PIC10Fxxx, PIC12Cxxx, PIC16Fxxx and PIC18Fxxx Families.

    Powerful new subroutine modules

    This library also features new advanced subroutine modules, which will allow the user to more easily develop programs for new, exciting applications...

    The following modules are included:
    • A/D
    • Arithmetic Module
    • Comparator using Voltage Reference
    • EEPROM Access
    • Frequency-Tacho Reading
    • I2C-24LC256 Interface Module
    • Interrupts
    • Keypad Interface Module
    • LCD Interface Module
    • Parallel Slave Port
    • PWM Module
    • RS232 Interface Module

    Programming Support for an Expanded Set of Chips

    ezSystem Professional supports the following chip configurations:

    PIC10Fxxx/12Cxxx/12Fxxx/16Cxxx/16Fxxx chips ( 12bit instruction set ):

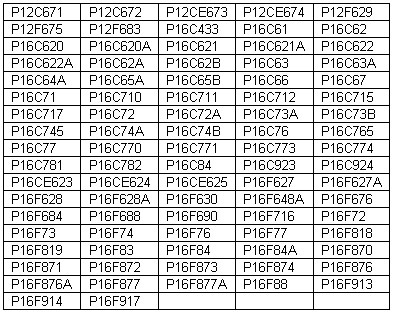

    PIC12Cxxx/12Fxxx/16Cxxx/16Fxxx ( 14bit instruction set ):

    PIC18Fxxx (16bit instruction set):

    A valuable library of technical manuals

    Included with the CD is a library containing all technical manuals for all supported chips. These PDF format documents are all accessible with a single click on the menu, and include reference documents for the PIC Microprocessor Mid-range MCU and 18Fxxx MCU families.

    Price

    AU$495 (ezSystem Professional)
